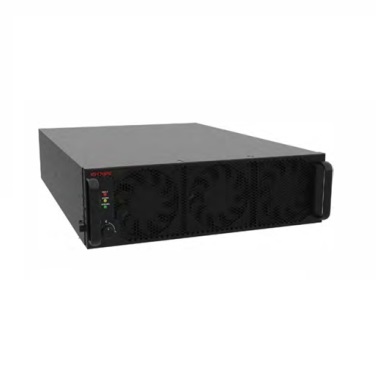

YT-UM series modular UPS 50-600kVA
The YT-UM series 50-600kVA modular UPS adopts digital control, modular design, and N+X parallel redundancy technology. Product capacity covers various power ranges from 50kVA to 600kVA, facilitating flexible configuration and gradual investment for users. Up to four units can be paralleled up to 2400kVA.
Description
marker
Application Areas
This product has a wide range of applications, providing safe, stable, reliable, and environmentally friendly power protection for critical loads in various industries such as telecommunications, finance, education, transportation, broadcasting, healthcare, and manufacturing.
Product Features
Advanced Technology
Employs digital control, offering superior performance and capable of handling completely unbalanced loads.
Overall efficiency up to 96%<sup>6</sup>
Output power factor of 1.
High Reliability
The centralized control unit is redundantly connected in parallel; failure of one unit does not affect overall operation. N+X parallel redundancy achieves 99.999% availability<sup>6</sup>
The centralized monitoring module is hot-swappable and uses centralized bypass power supply, improving the bypass power supply capacity.
Features EPO (Emergency Emergency Power Outage) functionality, enabling remote emergency shutdown (REPO).
Convenient and Flexible
Modular design; users can flexibly increase the number of modules.
Short downtime for maintenance; in case of an emergency, maintenance personnel can safely perform online maintenance.
Touchscreen color display provides comprehensive UPS status information, warning messages, and fault information.
Intelligent Design
Battery capacity and charging current can be set on the LCD screen, enabling automatic and smooth switching of charging modes.
Utilizes advanced two-stage, three-phase intelligent charging, balancing fast charging with extended battery life.
A wide range of optional accessories, including SNMP cards, relays, and dry contact cards.
Green and Environmentally Friendly
Utilizes a standard 19-inch rack, perfectly matching data center application environments.
Parallel battery sharing significantly reduces the number of batteries required.
30-50 external batteries are available, allowing users flexible battery configuration.
Detailed Specifications
| Category | Parameter | Value |
|---|---|---|
| Model | Model | YT-UM / 50-200 / 50-300 / 50-400 / 50-500 / 50-600 |
| Rated Capacity (kW) | 50~200 / 50~300 / 50~400 / 50~500 / 50~600 | |
| Max Number of Installable Modules | 4 / 6 / 8 / 10 / 12 | |
| Input | Rated Input Voltage | 380/400/415Vac |
| Input Voltage Range | 138~485Vac (305~485Vac no derating; 138~305Vac linear derating) | |
| Wiring System | 3-Phase 5-Wire | |
| Input Frequency Range | 40-70Hz | |
| Input Power Factor | ≥0.99 | |
| Input Current THDi | ≤3% (100% linear load) | |
| Bypass | Rated Input Voltage | 380/400/415Vac |
| Input Voltage Range | 220Vac upper: 25% (+10%,+15%,+20% opt); 230Vac upper: 20% (+10%,+15% opt); 240Vac upper: 15% (+10% opt); Lower: -45% (-10%,-20%,-30% opt) | |
| Wiring System | 3-Phase 5-Wire | |
| Bypass Synchronization Tracking Range | ±10% | |
| Output | Voltage | 380/400/415Vac ±1% |
| Power Factor | 1 | |
| Voltage Regulation (Mains Mode) | ±1%/±2%/±4%/±5%/±10% adjustable | |
| Frequency | (50/60 ±0.1%)Hz | |
| Waveform | Sine Wave | |
| Current Crest Ratio | 3:1 | |
| Output Voltage THDv | ≤2% (100% linear load); ≤3% (100% non-linear load) | |
| Transfer Time | Mains to battery: 0ms (tracking); Mains to bypass: 0ms | |
| Overall Efficiency | 96% | |
| Overload Capacity | 110% load: 60min → bypass; 125% load: 10min → bypass; 150% load: 1min → bypass | |
| Battery | Max Charging Current per Module | 20A |
| Battery Voltage | ±180/±192/±204/±216/±228/±240/±252/±264/±276/±288/±300Vdc (30/32/34/36/38/40/42/44/46/48/50 cells, i.e., 30-50 cells optional) | |
| Environment | Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -25°C ~ 55°C (without battery) | |
| Humidity Range | 0~95% (non-condensing) | |
| Operating Altitude | <1500m (above 1500m, derate according to GB/T 3859.2) | |
| Noise (dB at 1m) | <65 / <68 / <70 | |
| Functions | Alarm Functions | Overload, mains abnormality, UPS fault, battery undervoltage, etc. |
| Protection Functions | Short circuit, overload, over temperature, battery undervoltage, output over/under voltage, fan fault alarm, surge protection, bypass backfeed | |
| Communication Functions | CAN, RS485, Ethernet, dry contacts, parallel port, LBS port, smart slot, temperature sensor interface | |
| Mechanical | Dimensions (D×W×H mm) | Cabinet: 850×600×2000 / 850×600(1200)×2000 / 850×1200×2000 |
| Net Weight (kg) | 203 / 235 / 257(407) / 443 / 513 | |
| Standard | Applicable Standard | YD/T 2165-2017 |
