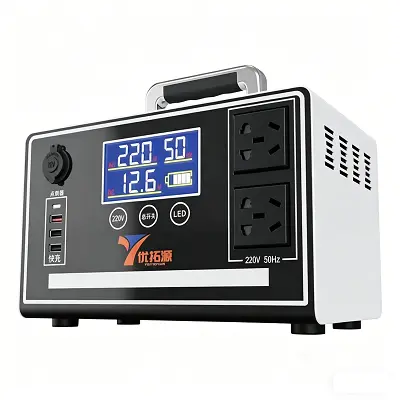

Power Bank（500W Pure Sine Wave）
-

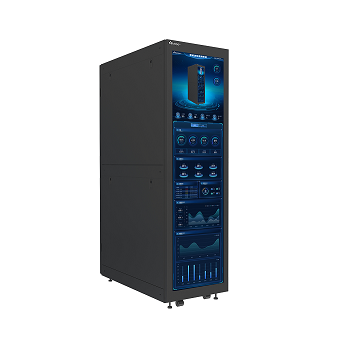

Single-row micro-module intelligent integrated cabinet
-

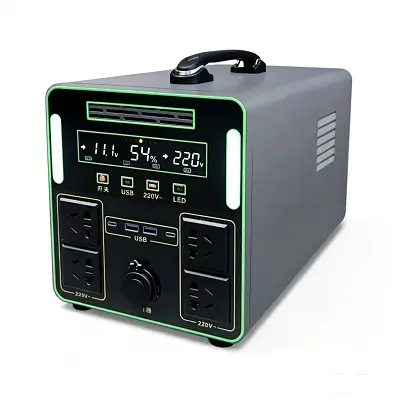

Power Bank（1000W Pure Sine Wave）
-
Power Bank（1500W Pure Sine Wave）
-
Double-row micro-modules (cold chain aisle)
-
High-frequency online single-input single-output series 1KVA-10KVA
-
Power Bank（1500W Pure Sine Wave）
-

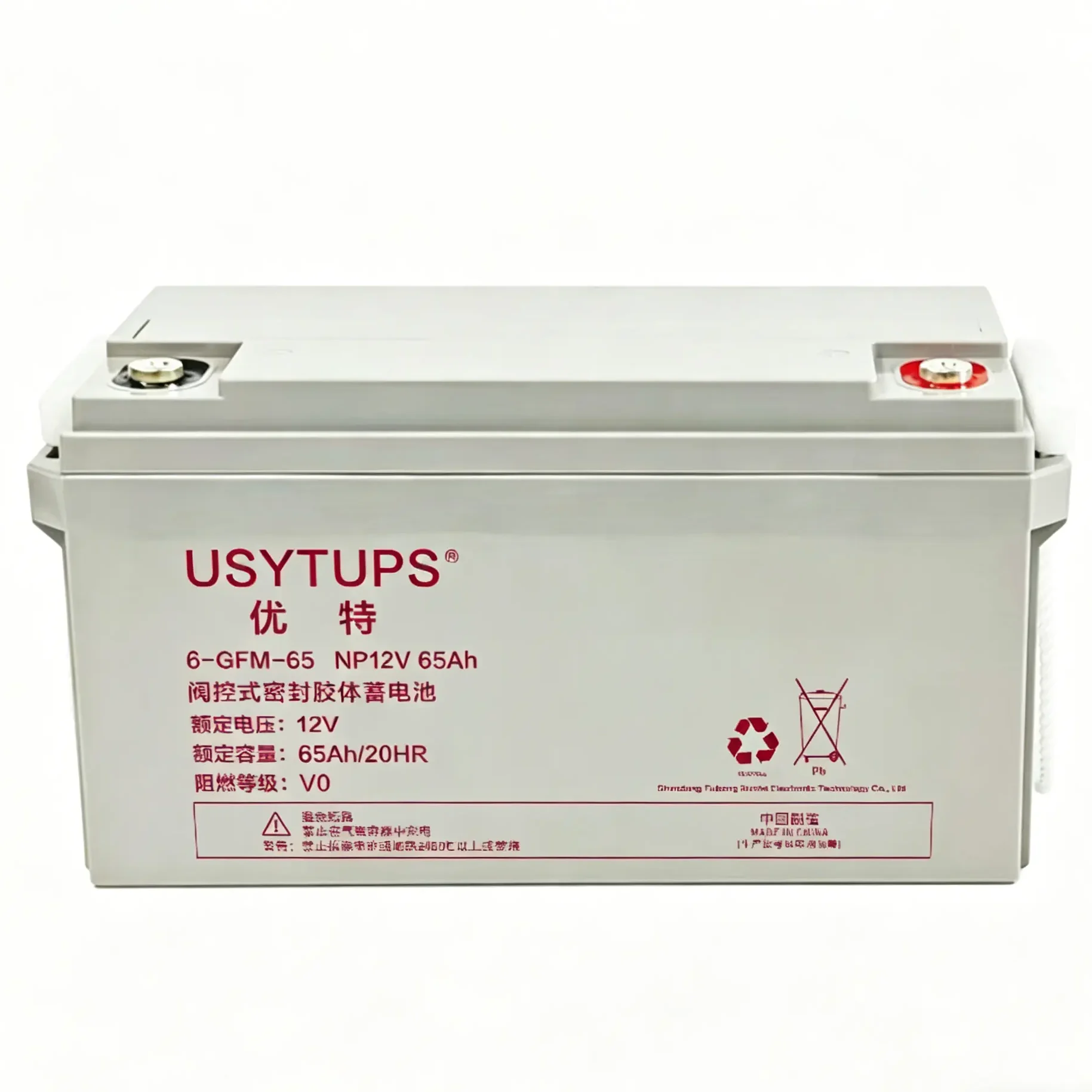

Storage Battery 12-65AH
-
Power Bank（Pure Sine Wave 8000W – 16S）
-
Power Bank（1500W Pure Sine Wave）
-
Industrial frequency online three-phase input and three-phase output 10KVA-600KVA
-
High-frequency online rack-mount single-input single-output series 1KVA-10KVA
-
High-frequency online three-phase input/three-phase output rack-mount type 10-40kVA
-
YT-UM Series Modular UPS 30-300kVA
Storage battery 12-18AH
| Item | Unit / Condition | Value |
|---|---|---|
| Battery Dimensions (L × W × H) | mm ±1 | 187 × 77 × 167 |
| Battery Dimensions (L × W × H) | inch | 7.3 × 3.0 × 6.57 |
| Carton Dimensions (L × W × H) | mm ±2 | 183 × 140 × 202 |
| Carton Dimensions (L × W × H) | inch | 7.2 × 5.51 × 7.95 |
| Quantity per Carton | 4 pcs | |
| Net Weight per Battery | 4 kg ± 70 g | |
| Net Weight per Carton | 15.2 kg | |
| Gross Weight per Carton | 15.5 kg |
Description
marker
Product Features
| Item | Condition / Description | Value |
|---|---|---|
| Rated Voltage | 12V | |
| Rated Capacity (20-hour rate) | 18Ah | |
| Capacity at 25°C (77°F) | 20-hour rate (1.2A) | 18Ah |
| Capacity at 25°C (77°F) | 10-hour rate (2.28A) | 16.8Ah |
| Capacity at 25°C (77°F) | 5-hour rate (3.84A) | 15.2Ah |
| Capacity at 25°C (77°F) | 1-hour rate (15.6A) | 13.6Ah |
| Internal Resistance | Fully charged, 25°C (77°F) | ≤13 mΩ |
| Cycle Life | 50% (C20) depth of discharge | Approx. 600 cycles |
| Float Service Life | Float charge voltage 13.8V at 25°C (77°F) | Approx. 3 years |
| Effect of Temperature on Capacity (20-hour rate) | 40°C (104°F) | 102% |
| Effect of Temperature on Capacity (20-hour rate) | 25°C (77°F) | 100% |
| Effect of Temperature on Capacity (20-hour rate) | 0°C (32°F) | 85% |
| Effect of Temperature on Capacity (20-hour rate) | -15°C (5°F) | 65% |
| Self-Discharge at 25°C (77°F) | Remaining capacity after 3 months storage | 90% |
| Self-Discharge at 25°C (77°F) | Remaining capacity after 6 months storage | 80% |
| Self-Discharge at 25°C (77°F) | Remaining capacity after 12 months storage | 62% |
| Charging Method at 25°C (77°F) | Cycle use | Initial current less than 7.2A; Constant voltage 14.4–15.0V |
| Charging Method at 25°C (77°F) | Float use | Constant voltage 13.5–13.8V |

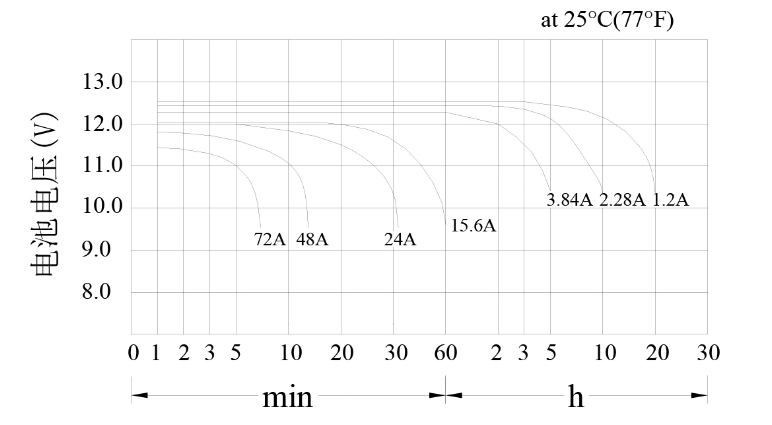

Discharge Curve

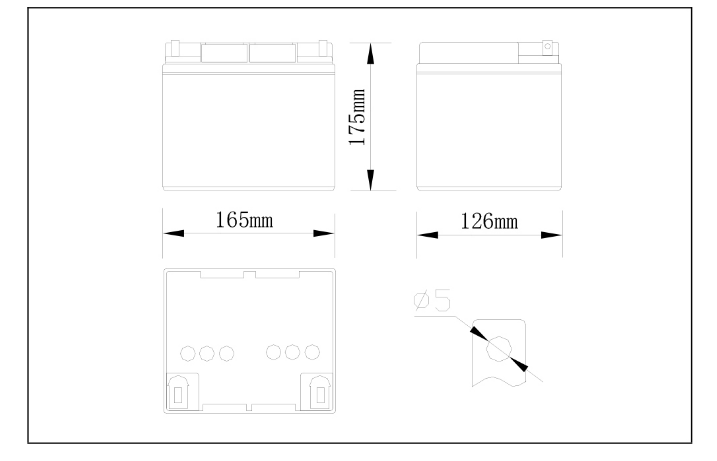

Dimensions
Product Materials
| Component | Material |
|---|---|
| Positive Plate | Lead Dioxide |
| Negative Plate | Lead |
| Container / Case | ABS |
| Safety Valve | Rubber |
| Terminal | Silver-Plated Copper Terminal |
| Separator | Fiberglass |
| Electrolyte | Sulfuric Acid |
Discharge Characteristics
Running Time (Constant Power Discharge Characteristics, 25°C / 77°F)
| Voltage | 3 min | 5 min | 15 min | 30 min | 45 min | 1 hr | 2 hr | 3 hr | 5 hr | 8 hr | 10 hr | 20 hr |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.6V | 1037 | 917 | 530 | 322 | 224 | 180 | 96.7 | 70.3 | 47.8 | 31.4 | 26.2 | 14.3 |
| 10.2V | 934 | 838 | 478 | 295 | 219 | 177 | 95.3 | 69.6 | 47.3 | 31.4 | 26.2 | 14.3 |
| 10.5V | 778 | 734 | 451 | 278 | 216 | 174 | 94.1 | 68.6 | 47.3 | 31.0 | 25.9 | 14.0 |
| 10.8V | 725 | 655 | 425 | 240 | 213 | 171 | 91.2 | 66.7 |
Leave Your Message
Related popular products
YT-UM series modular UPS 50-600kVA
The YT-UM series 50-600kVA modular UPS adopts digital control, modular design, and N+X parallel redundancy technology. Product capacity covers various power ranges from 50kVA to 600kVA, facilitating flexible configuration and gradual investment for users. Up to four units can be paralleled up to 2400kVA.
High-frequency online three-phase input/three-phase output rack-mount type 10-40kVA
This series of rack-mounted UPS systems is based on double-conversion online UPS and utilizes advanced high-tech technology as a new concept in power protection, resulting in a green and energy-saving rack-mounted uninterruptible power supply. It features redundant design of key components, superior performance, and employs internationally advanced technologies such as multi-mode process management, along with comprehensive power management software. It is reliable, efficient, intelligent, and flexible, and is specifically designed for network computer rooms and small intelligent devices (such as measuring devices, industrial automation equipment, etc.) and precision instruments in systems such as finance, telecommunications, insurance, transportation, taxation, military, securities, energy, education, government, and enterprises. It is particularly suitable for harsh power grid environments. Power Range: 10-40kVA Operating Mode: Three-phase input, three-phase output
Power Bank（1000W Pure Sine Wave）
Parameter Item Details Battery Type Ternary Lithium Battery (NMC) 3S1P Charger 12.6V 5A/10A Charge/Discharge Port Aviation Head M16 10A * 2; Anderson 50A * 1 USB Output USB1/USB2: 5V 2.4A; USB3: QC3.0 / QC2.0 Type-C Output PD 3.0 Cigarette Lighter Port 12V 10A (120W) AC Output 220V 50Hz Cycle Life > 1000 times Product Dimensions L193 * W335 * H220 mm Package Dimensions L445 * W270 * H295 mm
Power Bank（Sine Wave 5000W – 16S）
Parameter Item Details Battery Type LiFePO4 Battery 16S1P Charger 58.4V 10A Charge/Discharge Port XT90 Interface * 2 (20A) USB Output USB1/USB2: 5V 2.4A; USB3: QC3.0 / QC2.0 Type-C Output PD 3.0 Cigarette Lighter Port 12V 10A (120W) AC Output 220V 50Hz Cycle Life > 3000 times Product Dimensions L550 * W400 * H555 mm Package Dimensions L695 * W580 * H625 mm
Double-row micro-modules (cold chain aisle)
The closed cold aisle system module for data centers achieves green energy saving through the closed cold aisle, providing an effective solution to the cooling problem of high heat density cabinets in data centers. Under the premise of the same cooling effect, compared with traditional open cold and hot aisles, the air volume of the air conditioning indoor fans in a closed cold aisle is 60% of that in a traditional open aisle, meaning that the power consumption in a closed cold aisle is 60% of that in a traditional open aisle, achieving energy savings of over 40%.
Power Bank（3000W Pure Sine Wave）
Parameter Item Details Battery Type Ternary Lithium Battery (NMC) 6S1P Charger 25.2V 5A/10A Charge/Discharge Port Aviation Head M16 10A*2; Anderson 50A *1 USB Output USB1/USB2: 5V 2.4A; USB3/USB4: QC3.0 / QC2.0 Type-C Output PD 3.0 Cigarette Lighter Port 12V 10A (120W) AC Output 220V 50Hz Cycle Life > 1000 times Product Dimensions L500 * W250 * H285 mm Package Dimensions L650 * W340 * H350 mm

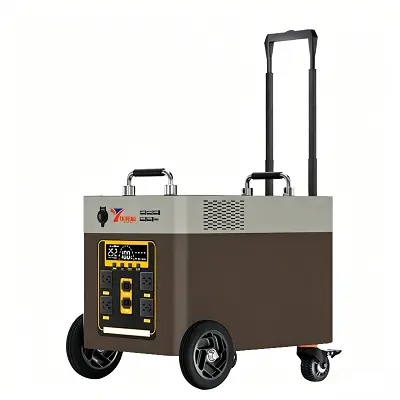

Power Bank（Pure Sine Wave 2000W）
Parameter Item Details Battery Type LiFePO4 Battery 8S1P Charger 29.2V*2 5A/10A Charging Port XT90 Interface 20A USB Output USB1/USB2: 5V 2.4A; USB3: QC3.0 / QC2.0 Type-C Output PD 3.0 Cigarette Lighter 12V 10A (120W) AC Output 220V 50Hz Cycle Life >3000 times Product Size L500 * W320 * H450mm Packing Size L660 * W480 * H513mm
Power Bank（1000W Pure Sine Wave）
Parameter Item Details Inverter Type Pure Sine Wave 1000W Battery Type LiFePO4 Battery 4S1P Charger 14.6V 5A/10A Charge/Discharge Port XT90 Interface * 2 (20A) USB Output USB1/USB2: 5V 2.4A; USB3: QC3.0 / QC2.0 Type-C Output PD 3.0 Cigarette Lighter Port 12V 10A (120W) AC Output 220V 50Hz Cycle Life > 3000 times Product Dimensions L350 * W235 * H300 mm Package Dimensions L450 * W310 * H375 mm

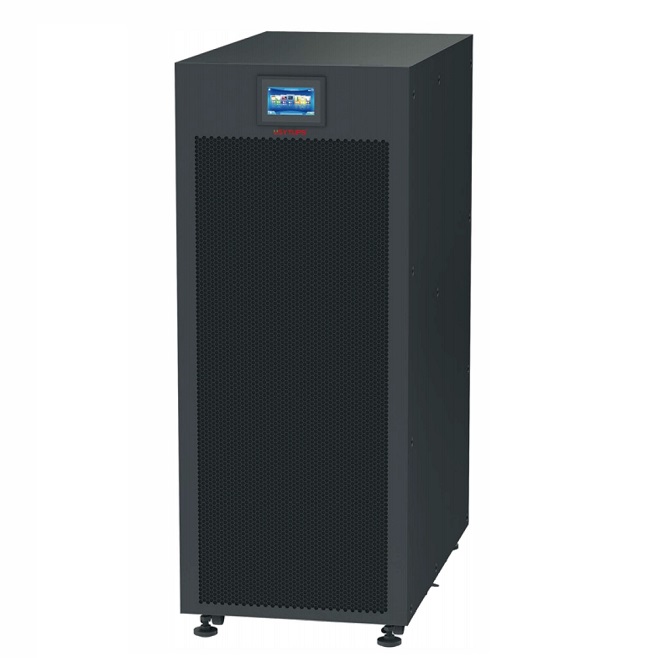

High-frequency online three-phase input/three-phase output series 200KVA-600KVA
The 200-600kVA series of three-phase input and three-phase output UPS is a new generation of online double-conversion three-phase input and three-phase output UPS. It adopts a modular structure design, fully digital control and three-level technology, and has the advantages of high efficiency, high power density and excellent output quality. It can eliminate various power grid problems and provide customers with stable and reliable power protection.

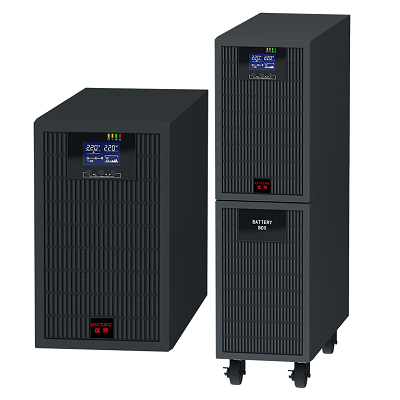

High-frequency online single-input single-output series 1KVA-10KVA
UTE’s single-input single-output UPS is a new generation of general-purpose UPS designed and manufactured by Shandong Fuhong Xunfei Electronic Technology Co., Ltd. It adopts a tower structure and an online, double-conversion architecture design, which can provide a better power environment for user loads compared with online interactive or standby UPS models.
Power Bank（Pure Sine Wave 8000W – 16S）
Parameter Item Details Battery Type LiFePO4 Battery 16S1P Charger 58.4V 10A Charge/Discharge Port XT90 Interface * 2 (20A) USB Output USB1/USB2: 5V 2.4A; USB3: QC3.0 / QC2.0 Type-C Output PD 3.0 Cigarette Lighter Port 12V 10A (120W) AC Output 220V 50Hz Cycle Life > 3000 times Product Dimensions L550 * W400 * H555 mm Package Dimensions L695 * W580 * H625 mm
Power Bank (2000W Pure Sine Wave)
Parameter Item Details Battery Type LiFePO4 Battery 8S1P Charger 29.2V*2 5A/10A Charge/Discharge Port XT90 Interface (20A) USB Output USB1/USB2: 5V 2.4A; USB3: QC3.0 / QC2.0 Type-C Output PD 3.0 Cigarette Lighter Port 12V 10A (120W) AC Output 220V 50Hz Cycle Life > 3000 times Product Dimensions L500 * W320 * H450 mm Package Dimensions L660 * W480 * H513 mm
Power Bank（1500W Pure Sine Wave）
Parameter Item Details Battery Type LiFePO4 Battery 4S1P Charger 14.6V 5A/10A Charge/Discharge Port XT90 Interface * 2 (20A) USB Output USB1/USB2: 5V 2.4A; USB3: QC3.0 / QC2.0 Type-C Output PD 3.0 Cigarette Lighter Port 12V 10A (120W) AC Output 220V 50Hz Cycle Life > 3000 times Product Dimensions L390 * W255 * H280 mm Package Dimensions L450 * W310 * H375 mm
Power Bank（1500W Pure Sine Wave）
Parameter Item Details Battery Type Ternary Lithium Battery (NMC) 3S1P Charger 12.6V 5A/10A Charge/Discharge Port Aviation Head M16 10A * 2; Anderson 50A * 1 USB Output USB1/USB2: 5V 2.4A; USB3/USB4: QC3.0 / QC2.0 Type-C Output PD 3.0 Cigarette Lighter Port 12V 10A (120W) AC Output 220V 50Hz Cycle Life > 1000 times Product Dimensions L365 * W236 * H236 mm Package Dimensions L470 * W300 * H320 mm
Industrial frequency online three-phase input and three-phase output 10KVA-600KVA
The YT-UT33(P) three-phase input and three-phase output dual-conversion online UPS power supply is a new type of energy-saving and environmentally friendly green power product developed by our company based on many years of UPS industry design experience. This series of products adopts highly reliable fully digital processing technology, intelligent human-machine interface, and powerful intelligent network management functions. It provides a perfect power protection solution, solving power problems such as power outages, high mains voltage, low mains voltage, voltage dips, amplitude oscillations, high voltage pulses, surge voltage, harmonic distortion, noise interference, and frequency fluctuations. It provides reliable power protection for today’s telecommunications, finance, transportation, government, manufacturing, energy, and various industrial automation equipment.

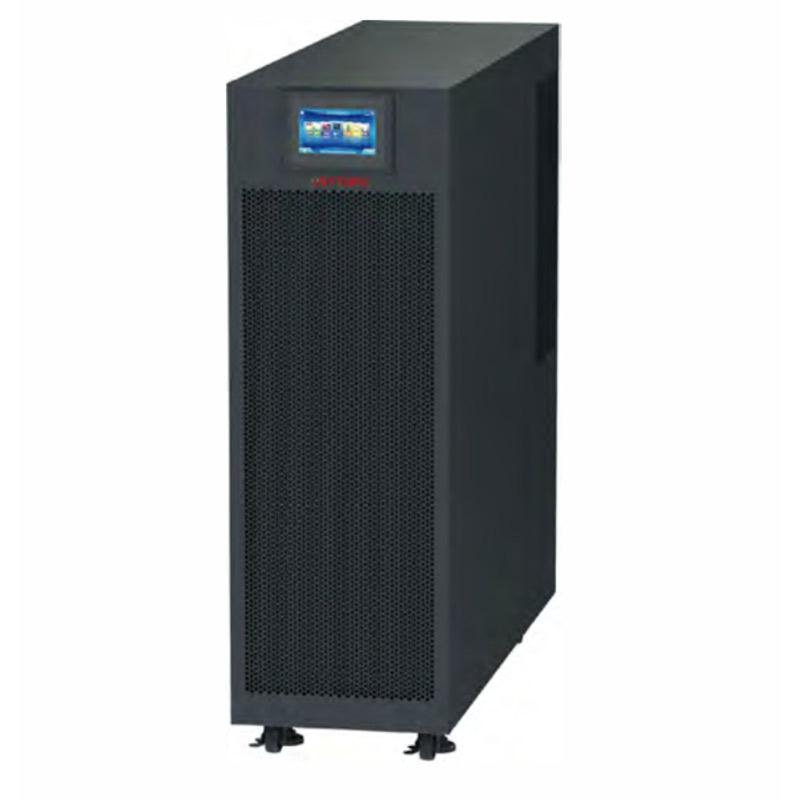

High-frequency online three-phase input/three-phase output series 10KVA-80KVA
